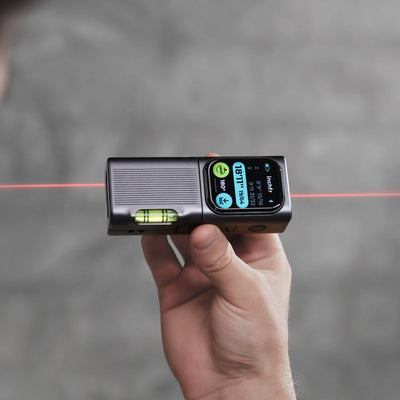

M-Cube-03 Bilateral Laser +
Create floorplans and layout sketches in minutes
Get 3 results in 1 take, attach 03 bilateral laser+module to boost measuring efficiency!
- 9X Faster than the traditional measure!
- 328ft/100m Wide Measuring Range
- Multi-Functional- Green cross line for the versatile scenario!
Note: This module requires combining with an M-Cube Main Unit.
-
M-Cube-03 Bilateral Laser +
-
M-Cube
$104.80 $131.00
-
Master Tripod
$152.00 $190.00 -
Target Plates x4
$14.00 $28.00 -
M-Cube Charging Station
$30.10 $43.00 -
M-Expert Kit
$104.80 $131.00
-
Buy 2 - 3
save 17%
-
Buy 4 and more
save 20%
-
Free
Shipping -
14 Day Money-back
Guarantee -
1 Year
Warranty
-
Key Features
- 9X Efficiency with Longer Distance and Wider Range: 3 Measurements in 1 take, up to 328 feet (100m).
- More Precise and Faster Measuring: With a precision of ±1/8in (±3mm) and a 10-FPS responding rate.
- 3-Axis Digital and Bubble Levels: Ensure high accuracy with both digital 3-axis gyro-level and physical bubble level.
- Green Cross-Line Levelling: provides better visibility and more prominent levelling.
- Advanced Auto-Calibration corrects tilts and eliminates errors.
- 5 Reference Surfaces for Flexible Measuring: Measure from five different reference surfaces: the top, the base of the main unit or the combo, the tripod screw hole center surface, and from item to item.
- Tripod Compatibility for Versatile Scenarios: Compatible with the Master Tripod, M-Expert Kit, and other standard 3-mm tripods for enhanced precision in levelling.
- Lifetime-Free App Integration:: Connects to the MEAZOR app via Bluetooth, allowing you to create floorplans, record measurements, and mark up items or spaces in photos easily. No more fumbling with pens and paper while measuring!
-
Basic Specs
- Materials: ABS Plastic, 7075 Aluminum Alloy, Silicone Rubber
- Built-in Battery: 900mAh (90-day standby, 14-day regular use, 12-hour continuous use)
- Measuring Distance Range: Maximum total distance of 328ft (100m), maximum either-side distance of 165ft (50m).
- Accuracy: ±1/8in (3mm) in ideal circumstances
- Laser Cross Line: Class II 520nm(Green Beam), 90° expanded angle.
- Dimensions (W, H, D): 1.3x2.2x1.7 in (33.0x55.9x43.2 mm)
- Weight: 2.8 Oz (79.9g)
- App: MEAZOR APP 2.0 (available for Android and iOS, Phone & Tablets)
-
Shipping
Orders ship within 3 business days. Free shipping for orders over $100 USD in Continental USA, most European, and East Asian countries. Others start from $10 USD.
- US Domestic Shipping: 3-5 business days
- International: EU & Asia: 4-6 business days
- Other Regions: 6-8 business days
· 328 ft/100m Fast Laser
· Up to 17 Functions
-
M-Cube-03 Bilateral Laser +
-
M-Cube
$104.80 $131.00
-
Master Tripod
$152.00 $190.00 -
Target Plates x4
$14.00 $28.00 -
M-Cube Charging Station
$30.10 $43.00 -
M-Expert Kit
$104.80 $131.00
-
Buy 2 - 3
save 17%
-
Buy 4 and more
save 20%
From M-Cube to MEAZOR APP
-
Bilateral Laser Measure
Max 330 ft (100m), with either side max 165 ft (50m)
Accuracy
±1/8 in (3mm) in ideal circumstances
Laser Green Cross-Line
Level II 520nm (green beam), 90° expanded angle
Laser Class
Class II 640nm. Output: 0.92mW
Battery
900mAh (12 hours of continuous use, 14 days of regular use, or 90 days of standby)
You May Also Like
Video Reviews
Multi-module laser measurer? M-Cube SNEAK PEEK & REVIEW
Reviewing The New M-Cube Laser Measuring System from Hozo Designs
This laser measure tool does everything M-Cube
Customer Reviews
I am really impressed about the quality and the advanced technology on this laser measuring. This helped me to make the plan of my house in very short time, alongside with very accurate measurements. It has a lot of functions which are suitable for beginners or for advanced architects.
Update: Interesting unintended feature, since it has magnetics to connect different modules the base unit is magnetic! So if you do metal stud construction it can stick to them. See the video --- I really like using this laser measurer, I had been using a dumb laser tape measure for the past few years and this just massively improves on it, the bi-directional laser is amazing. It is a bit finnicky to create a floor plan on the device, but it is still much faster than trying to sketch and take measurements at the same time. My only downside is it doesn't feel super rugged, so I am a bit worried I will break it on the job site
I recently got this laser measurement tool, and I am thoroughly impressed. It took me a short while to get used to the features, but once I did, it became incredibly easy to use. The battery life is exceptional; even after a couple of weeks of frequent use, it still holds a charge well.The accuracy of the measurements is spot on, which is critical for my woodworking projects. The compact design means I can easily carry it around in my pocket or tool belt, making it a convenient companion on job sites.The touchscreen display is bright and responsive, and I appreciate the intuitive UI. The additional features like measuring Distance, Area, Volume, and Pythagorean Height add a lot of value. The digital bubble level is a neat addition and works accurately.One of the standout features for me is the trig function, which simplifies complex measurements without needing a separate calculator. Just aim, measure, and you're done. It's a fantastic time-saver.Overall, this laser measure has become an essential part of my toolkit. If you’re looking for a reliable and portable measuring device, I highly recommend giving this one a try. You won’t be disappointed.
Cool gadget, measures the distance accurately. It also helps with leveling. Its fast and pocket size, easy to use
I got this to use when I work as a carpenter for only needed the lazer ruler but this had a few other features that I realized come in handy like a rolling ruler and a floor planner. The tripod is pretty handy as well. Seems like a good quality product will have to take some time to get an expert ability to use unless your familiar with similar products
