Your Pocket Total Station

Close

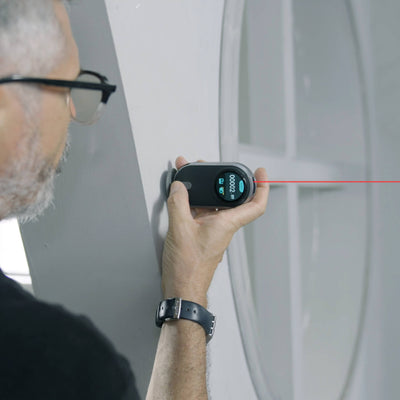

Meet MEAZOR 3D  the compact and powerful 6-in-1 laser tape measuring tool. With features of 3D floor plan making, curve scanning, and laser level, it's the perfect total station in your pocket. Ideal for architects, interior designers, and civil engineers, making on-site measuring and surveying a breeze.

$349.00 $349.00 Save

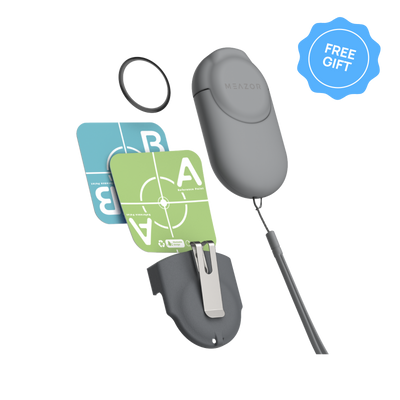

Holiday Sale: Buy 1 MEAZOR Premium Combo, save 20% and get 1 FREE Protection Kit 2.0!
Variant
  • MEAZOR 3D Premium Combo
    FREE GIFT+20% OFF
  • MEAZOR 3D
Works Best with
Save 20%
  • Protractor Kit
    $39.20 $49.00
Works Best with
Save 20%
  • Protractor Kit
    $39.20 $49.00
  • Ultra 3D Adapter
    $67.15 $79.00
Accessories: Buy More Save More
Save 20% to 50%
  • Master Tripod
    $103.20 $129.00
  • Target Plates x4
    $9.50 $19.00
Accessories: Buy More Save More
Save 20% to 50%
  • Master Tripod
    $103.20 $129.00
  • Protection Kit 2.0
    $19.50 $39.00
  • Target Plates x4
    $9.50 $19.00
  • Buy 2 - 3
    save 17%
  • Buy 4 and more
    save 20%
$349.00 $349.00 Save 0.00
Ways To Pay
  • Free
    Shipping
  • 14 Day Money-back
    Guarantee
  • 1 Year
    Warranty
  • Key Features
    • 3D Technology: Enhances capturing and floor planning capabilities
    • 40m/131ft Laser Distance Measurement

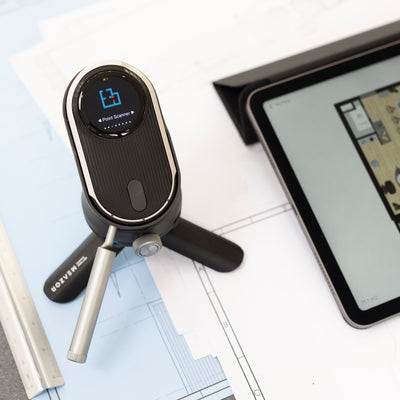

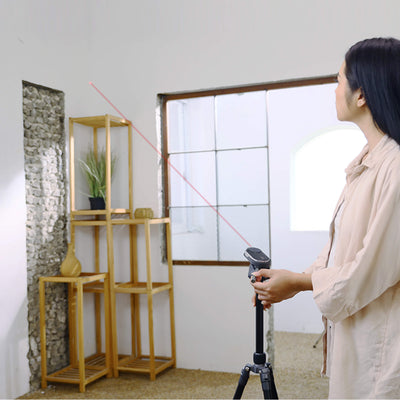

    • Point Scanner: Converts 3D space to 2D plans
    • Curve Scanner: Accurately outlines curved objects

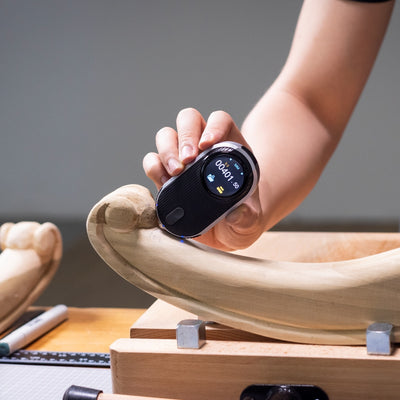

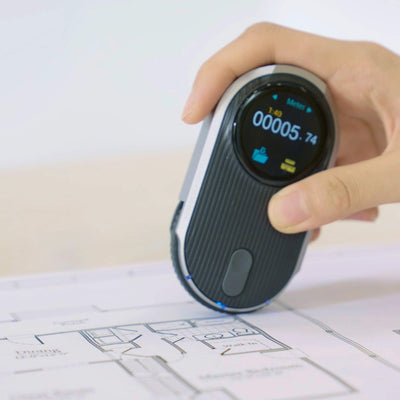

    • Rolling Scale Tape: Measures lines and curves, 57 scales
    • Time Efficiency: 70% faster than traditional measuring tools *
    • Improved Accuracy: Increases measurement precision by 72% *

    * Compared with MEAZOR.

  • MEAZOR 3D Premium Combo Includes

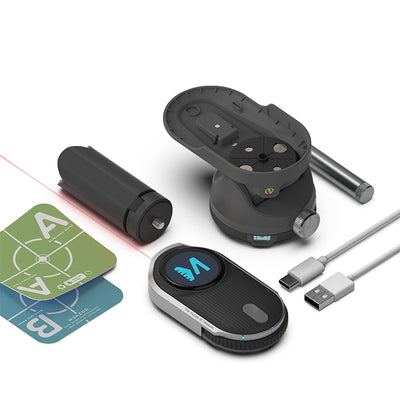

    The MEAZOR 3D Premium Combo includes:
    • MEAZOR 3D Standard Unit x 1
    • Ultra 3D Adapter x 1 (worth $79)
    • Target Plate x 2 (worth $19)
    • 3-inch/76.3mm Mini Tripod x 1
    • Type-C Charging Cable x 1
    • Quickstart Guide & Warranty Card
  • Basic Specs
    • Laser Distance Measure: 131ft (40m)
    • Resolution: ±0.04 in (±1mm)
    • Accuracy: ±1/16in (±2mm) in ideal circumstances
    • Battery: 650mAh rechargeable Li-ion (30-day standby, 6-hour continuous use)
    • Display: 1.3" IPS-backlit Display, tempered glass capacitive touch screen.
    • Resolution: 240×240 184 PPI
    • Dimension: 3.93×2.12×0.83 in (100×54×21.3mm)
    • Weight: 3.9 oz (110g)
    • App: MEAZOR APP 2.0 (available for Android and iOS, Phone & Tablets)

    More Specs ››

  • Shipping

    Orders ship within 3 business days. Free shipping for orders over $100 USD in Continental USA, most European, and East Asian countries. Others start from $10 USD.

    • US Domestic Shipping: 3-5 business days
    • International: EU & Asia: 4-6 business days
    • Other Regions: 6-8 business days

    Shipping policy ››

MEAZOR 3D From $296.65 Save Up To 20%
From $296.65 Save Up To 20%
M-Cube Charging Station
$29.00
1
· 4 Modules Build to Adapt
· 328 ft/100m Fast Laser
· Up to 17 Functions
MEAZOR 3D
ProductVariantDrop
$349.00 $349.00 Save 0.00
Variant
  • MEAZOR 3D Premium Combo
    FREE GIFT+20% OFF
  • MEAZOR 3D
Works Best with
Save 20%
  • Protractor Kit
    $39.20 $49.00
Works Best with
Save 20%
  • Protractor Kit
    $39.20 $49.00
  • Ultra 3D Adapter
    $67.15 $79.00
Accessories: Buy More Save More
Save 20% to 50%
  • Master Tripod
    $103.20 $129.00
  • Target Plates x4
    $9.50 $19.00
Accessories: Buy More Save More
Save 20% to 50%
  • Master Tripod
    $103.20 $129.00
  • Protection Kit 2.0
    $19.50 $39.00
  • Target Plates x4
    $9.50 $19.00
  • Buy 2 - 3
    save 17%
  • Buy 4 and more
    save 20%
$349.00 $349.00 Save 0.00

Advanced Laser Measuring & Floor Plan Tool

Ferocious 3D Core Functions

3D Displacement

Complex & Multiple Room Plan Scanning

Capture all details regardless of height or angle

3D Tilt

Avoid Obstacles & Capture Room Height

Capture all details regardless of height or angle

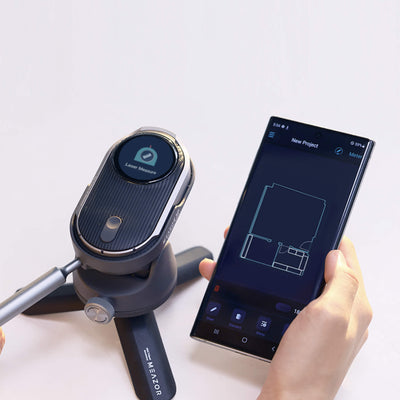

APP Integration

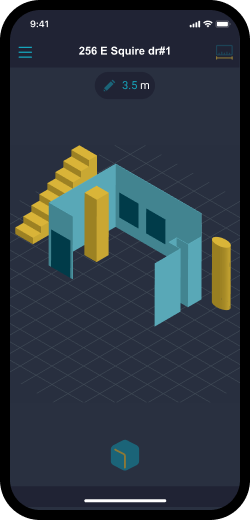

MEAZOR APP 2.0 available in iOS and Android

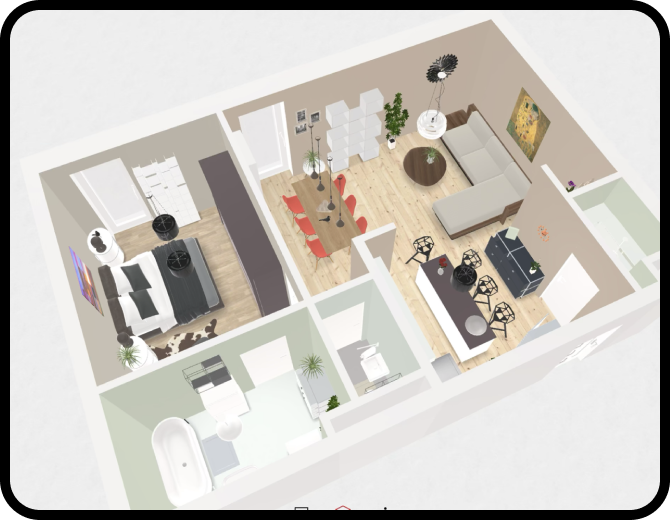

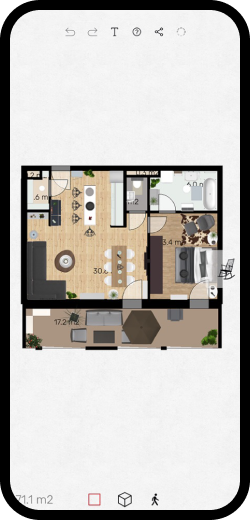

Roomle App available in iOS Store

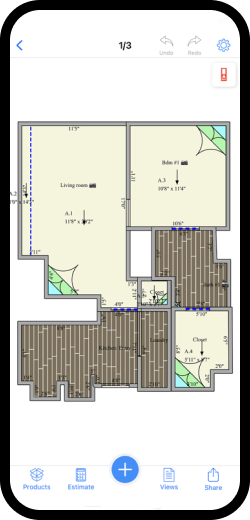

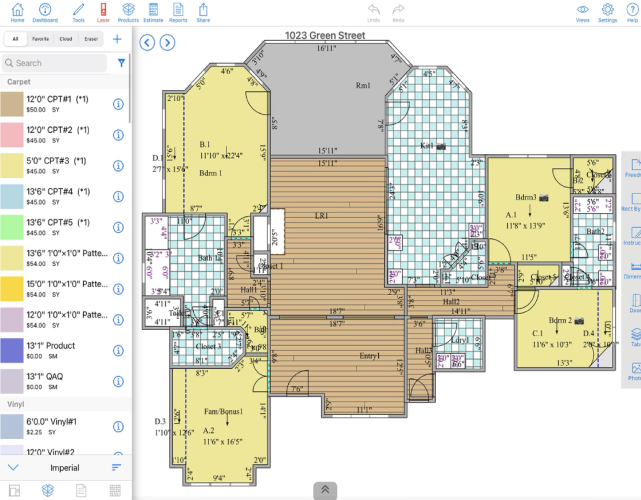

Measure Sqr available in iOS and Android

6 Core Functions

Multiple measurement scenarios

Enhance Your Measuring Experience with MEAZOR Accessories

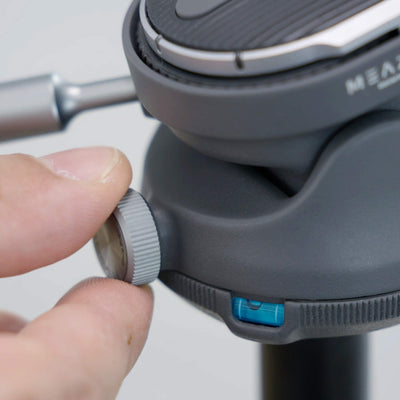

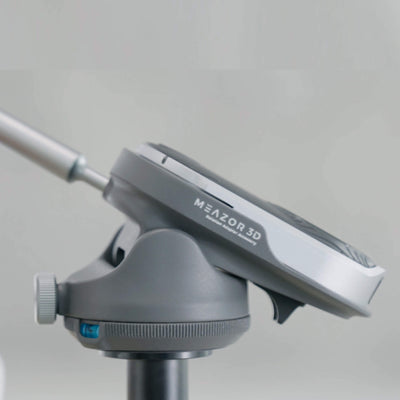

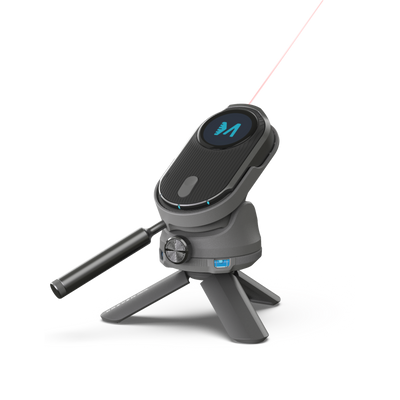

Ultra 3D Adapter

Features

Faster, Longer, Better

+60%

Measuring Range

MEAZOR 3D

40m/131ft

MEAZOR

25m/82ft

+35%

Processor Speed

MEAZOR 3D

STH7 MCU

MEAZOR

ST 412 MCU

  • 200 Data Built-in Storage

    Save up to 100 data for both laser measure and rolling ruler

  • Languages

    Supports multi-languages for more user communities

  • 1.3 Inch 184ppi

    Tempered glass 1.3 inch round supurior 184 ppi sensitive touch screen

  • Dual Physical button

    Match for the next level convinience

  • 30 Days

    Long lasting standby time

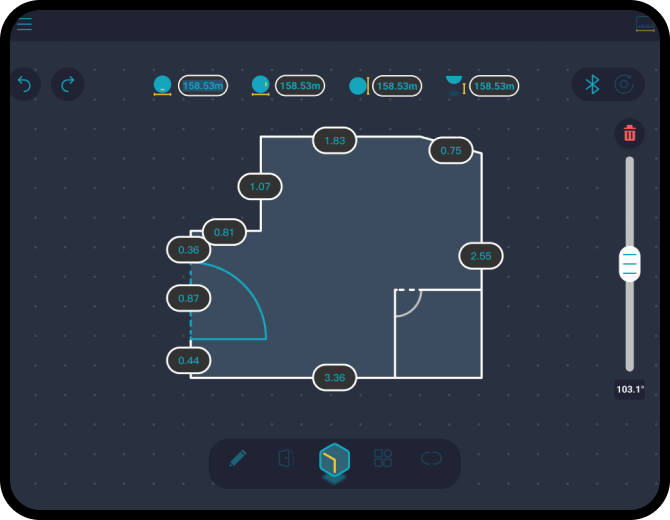

MEAZOR APP 2.0

Auto-dimension & Space calculation

Your project is just about to get much easier to be visualized

Freely switch units

Fractional, decimal, imperial, metric for a greater user community

CAD Export & more

Export plans in DXF, JPG & PDF Save Data List in XLS & TXT

Comparison Chart

P2P Laser Measure

$1000

  • ±3mm
  • 3D Modeling
  • Laser Distance
  • Floorplan Scanning
  • Level
  • Pro-laser
  • Single Room Surveying
  • >3 lbs (1.4kg)

MEAZOR 3D

$349

  • ±3mm*
  • 3D Modeling
  • Laser Distance
  • Floorplan Scanning
  • Level
  • Pro-laser
  • Curve Scanning
  • Protractor
  • Scale/Rolling
  • Multiple Rooms Surveying
  • ≈0.7 lbs (320g)

LASER MEASURE

$100

  • ±8mm
  • Laser Distance
  • Level
  • Single Distance
  • ≈ 0.5lbs (240g)

* The accuracy result is ONLY a test result comes from a real-life test of a 80m2/862sq.ft.2B2B home renovation proejct that use different tools. Please refer to MEAZOR 3D tech specs for details.

Read More about MEAZOR 3D

Compare MEAZOR 3D with M-Cube Pro Kit

Select the tool that suits your measurements best

Basic Functions
  • Conti-Walls Area
  • Conti-Walls Area
  • Conti-Walls Area
Laser Level
  • 3-axis gyro calibration
  • 3-axis gyro calibration
  • 3-axis gyro calibration
    Green Cross Laser
Laser Distance Measure Range
  • 3-axis gyro calibration
  • 3-axis gyro calibration
  • 3-axis gyro calibration
    Green Cross Laser
Smart Floor Planner Creator
  • 3-axis gyro calibration
  • 3-axis gyro calibration
  • 3-axis gyro calibration
    Green Cross Laser
Curve Scanner
  • 3-axis gyro calibration
  • 3-axis gyro calibration
  • 3-axis gyro calibration
    Green Cross Laser
Show More
Technical Specifications

More Specs ››

MEAZOR 3D
  • Laser Measure Disctance

    0.3ft-131ft (0.1m-40m)

    Accuracy

    ±1/16in (±2mm) in ideal circumstances

    Floor Plan Scanning

    Range: 0-184ft×184ft (33,856ft²)or 56m×56m (3136m²)
    Accuracy: ±1in (±25mm)in ideal circumstances

    Curve Scanning

    Maximum Curve Range(start point-endpoint): 82ft (25m)
    Angle Resolution : 1.0°
    Length Resolution: 0.04inch(±1mm)

    Laser Level

    Range: Dual axis ±90°Resolution: 0.1°Accuracy: ±0.2°at 0° ~45°. ±0.4° at other angles

You May Also Like

M-Cube

$71.20

$89.00

M-Cube Pro Kit

$316.00

$395.00

NeoRuler

$109.65

$129.00

NeoRuler Premium Combo

$199.20

$249.00

NeoRulerGO

$55.20

$69.00

MEAZOR 3D - Huge Upgrade For Architectural Works (AutoCAD, JPG & PDF)

MEAZOR 3D review: Ultimate floor plan & bluetooth laser measure tool

Beep and capture the space! Laser measure MEAZOR 3D

Meazor 3d HO COSTRUITO UNA STANZA SEGRETA

meazor 3d test avis tuto

Customer Reviews

Based on 85 reviews
69%
(59)
31%
(26)
0%
(0)
0%
(0)
0%
(0)
R
Ramli A.

Did a side by side test with Leica Disto. I must say im quite impressed with the close accuracy of this device. Picture share from Autocad export from both devices.
Had some issues attaching the 3D adaptor to the master tripod. I contacted customer service via the website. And it the best service that you can imagine. Got a replacement set wtihin a week. Kudos to the customer service.

F
Francesco L.

Impressive device...revolutionize the way of working.

D
Dominik G.
One small step for man, one giant for builder

All in all, a great pice of kit, with some small space for improvement and quite a learning curve for the user.

P
PABLO F.B.
Herramienta completa y de calidad

Me ha sorprendido gratamente. Era justo lo que buscaba para hacer mediciones de interiores exactas, sin tener que triangular y dibujar después, que al final nunca se lograba encajar. Con un trípode, se me ha facilitado mucho el trabajo. Fácil e intuitivo de utilizar.

c
corrado p.
buon prodotto

Prodotto molto utile, da utilizzare sui treppiede fotografico.
Pro: velocizza tantissimo il lavoro di rilievo di interni, ha delle funzioni che lo rendono "quasi" una piccola stazione totale da interni.
La precisione è sufficientemente buona (naturalmente dipende molto dalla precisione con cui si approccia la fase di rilievo)
Uso intuitivo.
Prezzo competitivo.
Contro: Sarebbe utile anche una rotella per l'angolo zenitale in quanto usando la leva in dotazione si fatica a riprendere il punto corretto.
Software di bordo, anche se chiaro potrebbe fornire qualche informazione aggiuntiva
Sarebbe utile una configurazione del tempo di autospegnimento, ripresa dei rilievi precedenti,...
App di scarico dati comoda, con però tante funzioni poco gestibili su smartphone
Opinione generale: Un buon prodotto, probabilmente non all'altezza dei vari Leica, (che però costano 5 volte tanto), però direi che il prezzo di acquisto lo vale tutto. Per chi ha praticità di attrezzatura topografica, non avrà problemi nel gestire il rilancio della stazione (utilizzo del teorema di Carnot). Consigliato molto in particolare per integrare un pacchetto hardware che ogni tecnico dovrebbe avere.
